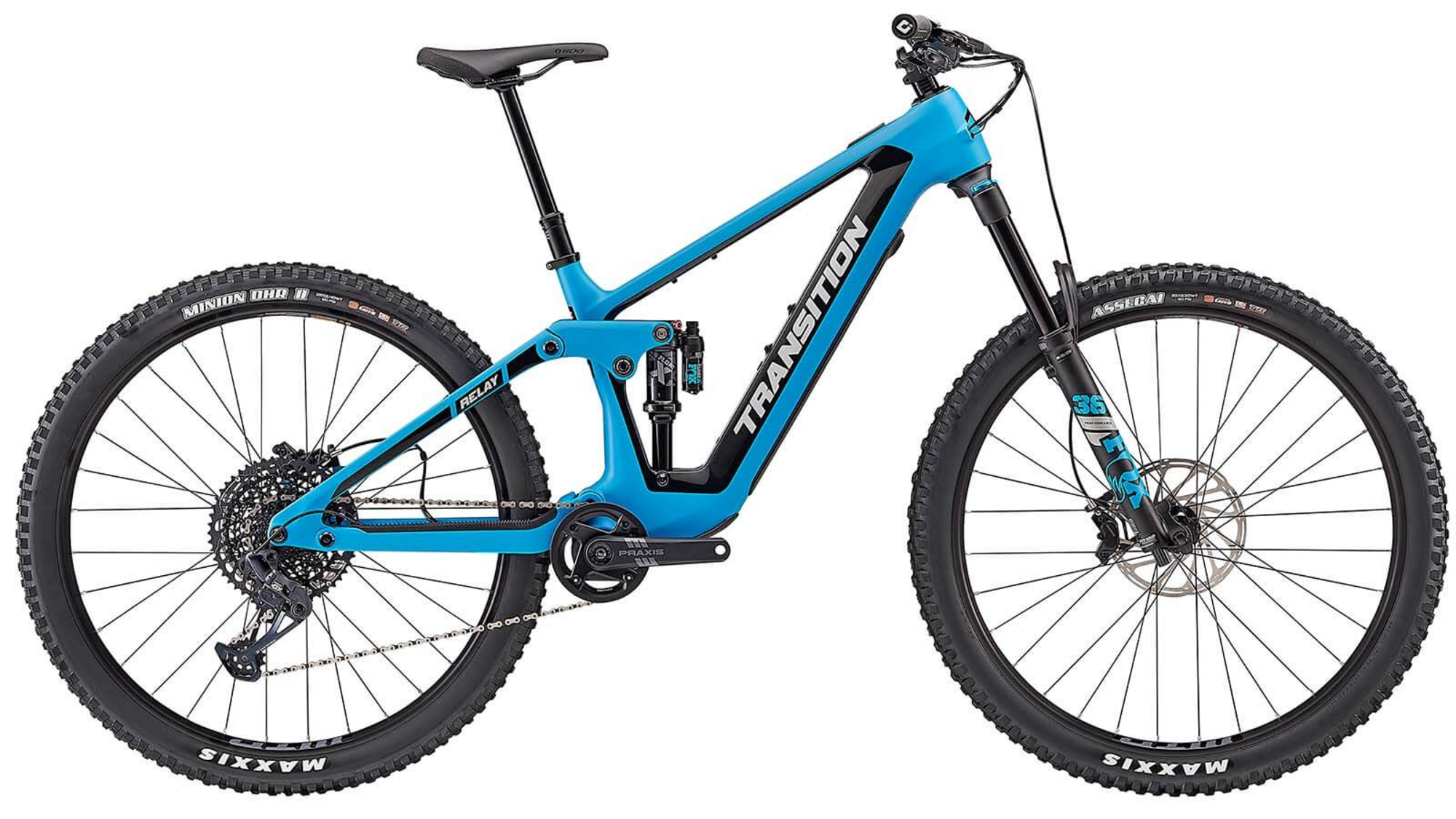

Transition Relay Carbon GX Mechanical

Transition Relay Carbon GX Mechanical
Color: TR Blue
Size: Large
Wheel Size: 29-inch
Please select options Unavailable


The Mountain Bikers eMTB
Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.


Two Bikes In One
Full of modularity, the Relay can be ridden with the battery installed and powered, or removed, which transforms it into a regular mountain bike. Its versatility allows you to take it on a road trip where your plans include riding in areas that are legal for eMTB's, and also areas that do not allow eMTB's. The tool free battery door allows you to remove and reinstall the battery in a matter of seconds.

Starting at 42.5lb/19.27 kg with the battery and 37.5lb/17.01kg without the battery, every Relay is purpose built with components to be ridden hard.

The Relay and Relay PNW share the same frame. The lower shock flip chip adjusts the geometry to compensate for a 27.5" or 29" rear wheel. Both Relay and Relay PNW have the ability to be run at 160 or 170mm travel front and rear, dual 29 or mixed wheel. Riders can choose the Relay with dual 29 and 160mm travel for a more lightweight, trail bike feel, or chase their burly trail dreams with the heavy hitting Relay PNW with 170mm travel and mixed wheels. The Relay is purpose built to be ridden hard and comes equipped with a component spec for doing so. Making both the Relay and Relay PNW two of the lighter, heavy hitting eMTBs on the market.

The lightweight 60Nm Fazua Ride60 drive unit weighs 4.3lb/1.96kg. The minimal drag and power to weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you're not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250 watts continuous power, 450 watts peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers.

The 430Wh battery weighs 4.85lb/2.2kg. It is easily removable via the tool free battery door underneath the downtube. The battery is charged off the bike, which is a bonus for customers with challenging bike storage and charging situations. The tool free battery door makes this hassle free, and it greatly simplifies the frame and door interface making it lighter and more durable.

The simple and ergonomic ring controller adjusts modes with a gentle nudge up or down. Pushing it up increases the power level, pushing it down decreases power level, pushing inward will activate walk mode. Holding the controller up for 2 seconds from any assistance mode will activate a boost mode, giving you peak system power output for roughly ten seconds.

The sleek display on the top tube consists of 5 led lights to give you an indication of power mode and battery life. The Relay has three power modes designated by different LED colors. Breeze mode (Green) is very functional in many situations, and is custom tuned by Transition to use in varied terrain, not just riding to the trailhead. River mode (Blue) is preset to match the amount of energy you are delivering to the pedals. If you're soft pedaling it delivers a minimal amount of assistance. If you're hammering it will give you as much available assistance it can, which provides a very intuitive experience and range management. Rocket mode (Pink) provides maximum power to help you tackle steeper climbs and challenging terrain, it will reduce your range but packs quite a punch.

The Fazua Ride60 app pairs to the Relay via bluetooth technology. The Relay comes equipped with our well thought out profile, but you are able to fully customize your settings in all assistance modes. With Max Power and Support Relation you are able to set the maximum mechanical power output and torque in each mode. Support Relation allows you to adjust how much assistance you are given in relation to how much force you apply to the pedals.

Ramp Up allows you to adjust how responsive the system delivers the assistance in each mode. Whether you're an experienced rider looking for the most responsive and powerful setup, or someone who values more distance out of your rides, the app provides a comprehensive array of adjustments to tune your ride to your liking.

A.REACH 410/405 430/422 460/452 485/477 510/502 535/527
B.STACK (CARBON) 590/588 615/615 628/634 637/643 646/652 655/661
B.STACK (ALLOY) 595/593 620/620 628/634 637/643 646/652 655/661
C.EFFECTIVE TT LENGTH 523/532 553/564 586/597 614/631 642/665 671/696
D.SEAT TUBE LENGTH (CARBON) 380 390 410 430 460 490
D.SEAT TUBE LENGTH (ALLOY) 410 410 410 430 460 490
E.EFFECTIVE ST ANGLE 79.7/79.3 79.1/78.4 78.4/77.7 77.8/77.1 77.3/76.6 77/76.3
ACTUAL ST ANGLE 71/70.6 71/70.3 71/70.3 71/70.3 71/70.3 71/70.4
SEAT TUBE OFFSET AT BB 90 90 90 90 90 90
F.HEAD TUBE LENGTH (CARBON) 100 100 115 125 135 145
F.HEAD TUBE LENGTH (ALLOY) 105 105 115 125 135 145
G.HEAD TUBE ANGLE 64/63.6 64/63.3 64/63.3 64/63.3 64/63.4 64/63.4
H.CHAINSTAY LENGTH 436 442/440 442/440 448/446 448/446 448/446
I.WHEELBASE 1167/1172 1208/1211 1244/1247 1280/1282 1309/1312 1338/1341
J.BOTTOM BRACKET DROP 15/11 25 25 25 25 25
K.ESTIMATED BB HEIGHT 340/343 350 350 350 350 350


Motor Fazua Ride 60
Battery Fazua Energy 430 Take Out
Charger Fazua Charger
Fork Fox Float 36 Grip Performance (160mm Travel)
Hubs Novatec D791SB-B15/D902SB-B12
Rims WTB i30
Stem ARaceFace Aefect R (40mm)
Chain SRAM GX Eagle
Frame Relay Carbon 160mm
Tires Front: Maxxis Assegai 3C EXO+ 2.5
Rear: Maxxis Minion DHRII 3C EXO+ 2.4
Brakes SRAM Code R
Rotors SRAM Centerline (200mm)
Saddle SDG Bel Air 3
Spokes Pillar Spokes
Headset FSA No.55R
Crankset Praxis Alloy ETOR (165mm, X-Small 160mm)
Seatpost OneUp Dropper Post XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Shifters SRAM GX Eagle Single Click
Chainrings Transition Bash Spider SRAM 32t Alloy E Ring (X-Sync2)
Handlebars RaceFace Chester 35 XS/SM(780x20) MD/LG/XL/XXL(780x35)
Rear Shock Fox Float X Performance (205x60mm)
Tape/Grips ODI Elite Flow Lock-On
Rear Derailleur SRAM GX Eagle
Accessories & Extras Tubeless Valves & Sealant
Cassette/Freewheel SRAM XG 1275 (10-52t)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
TR Blue / Large / 29-inch 769165683861 210000001520
